SEWAGE TREATMENT SYSTEM

Sewage treatment system : Tricel novo IE 6

OVERVIEW

This sewage treatment system is suitable for a 4-bedroom home. The Novo is reliable, easy to install, and simple to maintain for all of your wastewater treatment needs.



Stage 1: The wastewater travels to the primary settlement chamber.

Here, the heavier solids drop to the bottom of the chamber, separating from the liquids. The lighter solids float to the top and harden, creating a seal to prevent any odour from escaping. 70% of solids are separated in the stage.



Stage 2: This stage takes place in the aeration chamber.

Naturally occurring bacteria inhabiting specially designed plastic filter media break down the waste, removing it from the liquid. Wastewater passes through the filter media over and over again, purifying the wastewater.



Stage 3: The wastewater flows to the final settlement chamber.

Any remaining bacterial particles separate from the liquid. Any final impurities fall to the bottom of the system and are then pumped back to the primary settlement system. At the end, the remaining liquid now meets the required standards and is ready for discharge to a suitably designed discharge area.

064 6632421

If you have any questions, feel free to call us

Share on Facebook
Share on LinkedIn

VISIT OUR virtual SHOWROOM

Features and Benefits of Tricel Novo 6+ Sewage Treatment Plant

  • The Tricel Novo sewage treatment system requires less than 5m squared ground clearance.
  • It is a compression moulded SMC (sheet moulding compound) tank. The compression moulding process is one of the most technologically developed processes to produce structural composites. They are much stronger than GRP or Polyethylene tanks.
  • No concrete backfill for installation on most sites saving up to €400 over lower quality GRP/plastic competitors.

Tricel Novo IE 6+ Specifications

  • Dimensions – Length 2.6m x Width 1.64m x Height 2.24m
  • Weight while empty – 300kg
  • Inlet invert to base – 1.375m
  • Outlet invert to base – 1.3m
  • Inlet invert to ground level – 0.535m

If you want more information about our sewage treatment system and services. Don’t hesitate to check our brochures below, or to contact us directly

Interact with the Tricel Novo Sewage Treatment Plant

How to interact with the tank

  • Click on the numbers to see the annotations.
  • You can also switch between the treatment process stages (yellow circle at the bottom left-hand corner) and the anatomy of the Novo (green circle at the bottom left-hand corner).
  • To view in Virtual Reality (VR), click the square at the top right-hand corner and simply scan the QR code with your phone.
  • In order to check the dimensions, click on the spanner icon.
  • To download an image of the Novo, click on the camera icon (top right-hand corner)

7 Key Reasons to Choose a Tricel Novo Ie6

There are many key reasons to choose a Tricel Novo wastewater treatment plant. Please find below some of them.

Highly durable SMC tank

A Tricel Novo is constructed from a compression moulded SMC tank. Compression moulding is one of the most technologically developed processes for manufacturing structural composites. Components are manufactured under heat and high pressure and have unrivalled strength and durability over standard GRP or polyethene tanks.
SMC is unique in the wastewater treatment industry. Tricel SMC tanks have operated in some of the harshest climatic conditions for over 50 years with no defects.

Environmental agency compliance

Tricel Novo complies with the Environment Agency General Binding Rules in England, Natural Resources Wales exemption criteria and SEPA requirements in Scotland. Tricel advises consulting with your local agency on the effluent treatment required.

Fully tested and certified

All Tricel wastewater treatment plants have been tested for European certification EN 12566-3. This certification pushes all plants for strength, water tightness, durability and treatment efficiency.
By using a wastewater treatment plant which is CE certified. You can rest assured that it has complied with tests and inspections, guaranteeing an elevated level of security and efficiency.

Minimum maintenance and repair costs

No moving parts or pumps in the plant, ensuring reliable operation. Minimal maintenance and repair costs.

 Lower installation costs

No concrete backfills are required for installation on most sites saving up to £300 over lower quality GRP or polyethene alternatives from competitors.

Fitted alarm

There is a factory alarm fitted onto all Tricel Novo systems. This system will warn you if something needs to be done on the Tricel Novo.

Ceramic diffuser

Tricel’s ceramic diffuser is unique in the domestic wastewater treatment plant market. It will last twice as long as the standard competitors’ rubber equivalents. This saves money on both call-out fees and replacement parts.

Our range of products

Tricel Vento

Tricel Vento Septic Tank

Shallow dig tank, strong & robust underground tank, No electrical or moving parts. Ideal for sites with good drainage & plenty of space.

Learn more
Tricel Novo Domestic sewage treatment

Tricel Novo Sewage Treatment Plant

Durable & long lasting SMC tank, shallow dig tank, easy installation (Plug and Play), long life components.

Learn more
Tricel Maxus Combi

Tricel Maxus Sewage Treatment Plant

Commercial plant. Submerged Aerated Filter (SAF) technology. Ideal for project over 50 PE.

Learn more
Tricel Tero tertiary treatment plant

Tricel Tero Tertiary Treatment

An eco-friendly and modular system with proven E.Coli Treatment capabilities in line with the new EPA requirements.

Learn more
Tricel Puraflo secondary treatment plant

Tricel Puraflo Secondary treatment plant

Ideal for sensitive sites, compliant to Irish Standard, small footprint.

Learn more
Tricel Sandcel sand polishing filter

Tricel Sandcel
Sand Polishing Filter

Provides a dual function of polishing the effluent from a wastewater treatment system and disposing it into groundwater.

Learn more
Pumping Solutions

Tricel Pumping Stations

Pump fluids from one place to another where gravity drainage cannot be used, easy and trouble-free installation

Learn more

50 years in business

A highly successful multinational corporation with over 50 years’ valuable industry experience

SEWAGE TREATMENT PLANTS

Plants available for all capacities, from 1PE up to 50PE. Free advice on request.

Fast Delivery

On-time delivery is a core requirement of our successful business operations

Meet our team

To find a technician in your area, visit our page

TALK SEWAGE TREATMENT

To speak to one of our agents online, click here

ASK FOR A QUOTE

Request a free quote today to have a quote that meets your project!

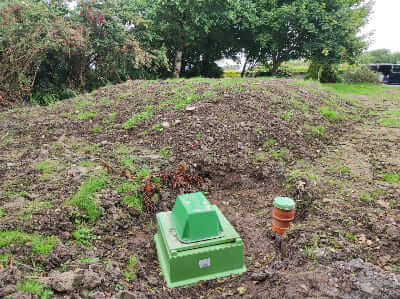

8PE installation Essex

Recent projects with Tricel Novo IE6 treatment plant

Extensive industry experience, manufacturing since 1973.

Tricel manufacture deliver & install sewage treatment plants across a wide range of industry sectors throughout Ireland & the UK. Tricel also provide import/export services for our international clients. Top quality material offers outstanding capabilities including long life, durability and is a cost-effective solution for sewage treatment even in the harshest environments.

Tricel has installed many of its Tricel Novo Sewage Treatment Plants across the UK.



Frequently Asked Questions

PE represents the initials of Population Equivalent. Population equivalent: conversion value which aims at expressing non-domestic applications in terms of domestic loading based on 1 person creates 60 g/day BOD5 and 150l/day. (Code of Practice: Wastewater Treatment and Disposal Systems Serving Single Houses (p.e. < 10), EPA)

Tricel Novo Vitae

 Both are wastewater treament plant solutions manufactured by Tricel. Wastewater treatment plants offer a superior quality of treatment. For example, the Tricel Novo comprises of three independent wastewater treatment zones and offers an average of efficiency of 95.9% BOD removal.
This is a higher treatment standard than the effluent from a septic tank. Please note: all wastewater treatment plants used in Ireland must comply with the EN12566-3 standard and all septic tanks must comply with the EN12566-1 standard..

Tricel Vento

The septic tank from Tricel is manufactured as a primary treatment. Designed for the settlement of your effluent. This product may need an additional treatment like the Sandcel or Puraflo.

Most Tricel products have a warranty. To discover all the guarantees on our products, as well as on the internal parts, consult our dedicated product pages.

The required standards are 20:30:20 BOD, SS, NH4. All Tricel produces exceed the requirements when tested to En12566-3 and comply with SR66.

Learn more about our certification

Tricel recommends that you maintain your device to the fullest. You are obliged by law to avoid all types of pollution or nuisances. Do not hesitate to contact us for more information on our service contracts. An annual maintenance contract may be offered.
